Location:
Staufenberg, Germany
Manufacturer:
UNIMAC
Model:
FM 1 X300

Specifications

Condition:
used
Stock number:
106968
Subcategory:
Milling

Description

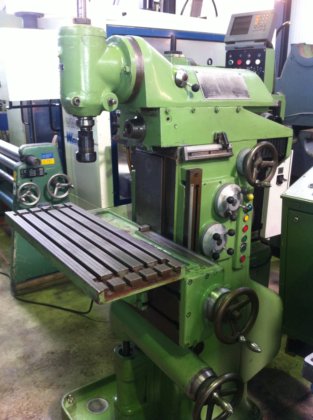

Universal milling machine Fabr. UNIMAC Type FM 1
Masch. Reference: 4193
Technical specifications:
Working surface of the fixed box table: 600 x 240 mm
Longitudinal movement: 300 mm
Vertical movement: 200 mm
Transverse movement: 350 mm
Spindle taper: ISO 40 / Morse 4
17 automat. Feed rates: 10 - 208 mm / min
12 Spindelrehzahlen: 63 - 1200 rpm.
Motor power: 1,1 / 1,9 kW
Dimensions L x W x H: 1160 x 1180 x 1800 mm
Weight approx .: 750 kg
second hand
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding. Errors excepted.
