Top Seller
WMW SU 315 - 1000
Location:
Staufenberg, Germany
Price:
No price
Model:
SU 315 - 1000 mm

Specifications

Condition:
used
Stock number:
106809
Subcategory:
Grinders

Description

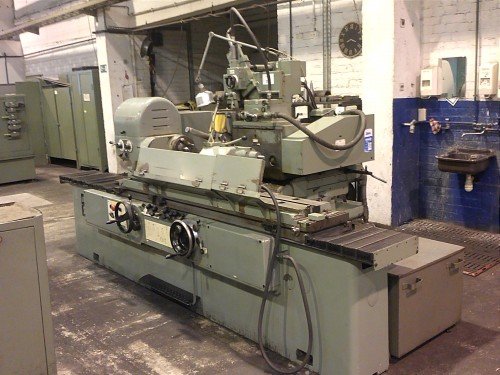

Universal circular grinding machine WMW Type SU 315 - 1000
No: 4582
Technical specifications:
Largest rotation diameter: 315 mm
Largest grinding length: 1000 mm
Largest workpiece weight: 300 kg
Grinding wheel dimensions gr. Drm. : 630 mm
Width: 200 mm
Bore: 305 mm
Table speed for longitudinal grinding: 0.05 - 5 m / min -1
Table adjustment by handwheel rotation fine: 4.9 mm
Coarse: 26.5 mm
Tilting of the upper table: 7 ° 20
Workpiece rotation (10 steps): 22.5 - 500 min-1
Swivelability against the abrasive body: 105 °
Away from the closure body: 15 °
Grinding spindle speed at V = 35 m / s. : 1060/1200/1400 rpm.
At V = 50 m / sec: 1500 rpm.
Connection: 7.5 kW
Weight: 5 t
Outside dimensions LxWxH: 3800 x 1700 x 2000 mm
With
- Copy dresser
- Cooling system
- various grinding wheels
Used, in good condition
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding.
