1991 RASI UNI 3 RCD in Staufenberg, Germany

Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
RASI
Model:
UNI 3 RCD

Specifications

Condition:
used
Year:
1991
Stock number:
106725
Category:
Machine Tools equipment in Germany

Description

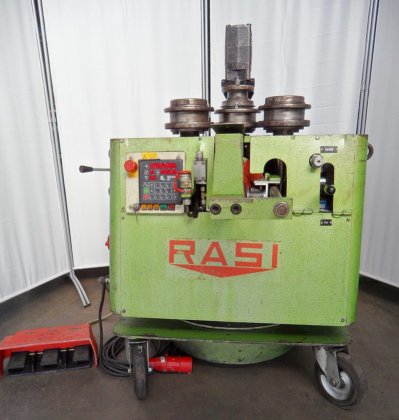

CNC electro-hydraulic universal bending machine RASI type UNI 3 RCD
No .: 1923 Year of manufacture 1991
Technical specifications:
Max. Bending performance of mandrel bending: 60.3 x 4.5 mm
Flat edge 90 °: 120 x 16 mm
Upright 180 °: 80 x 10 mm
Segment bends: 89 x 4.0 mm
Number of driven rollers: 3
Rolling diameter: 180 - 210 mm
Shaft diameter: 60 mm
Rolling speed: 0 - 12 rpm.
Pressure on medium benders: stepless: 0 - 25 t
Stroke of the middle roller: 0 - 280 mm
Number of presettable bending angles: 80
Drive power: 3,0 kW
With
- Working piston guide spring holder
- Thorn bending device 5000 mm with an anti-travel abutment
- Wrinkle holders
- Longitudinal stop linkage 5000 mm
- hydr. Dorn retraction
- Option Hydraulic connection for the bending tool
- Ring bending device with adjustable inlet rollers
- Standard roller set for flat and square material
Roller sets 26, 9; 33.7; 42.4; 48.3; 1 "; 1 1/4"; 1 1/2 "
- flat iron trowel
