Top Seller
MORAT B 9 in Staufenberg,
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
MORAT
Model:
B 9

Specifications

Condition:
used
Year:
1957
Stock number:
50087
Subcategory:
Hobbing
Subcategory 2:
Gear machines

Description

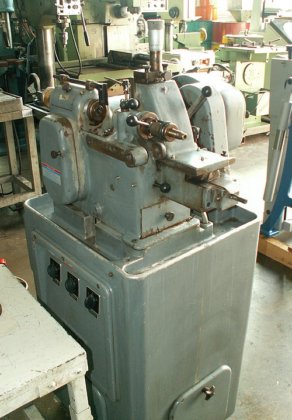

Automatic Hobbing Fabr. MORAT type B 9
for milling of gears with straight teeth
Technical specifications:
gr workpiece diameter magazine guide. 20 mm
Workpiece diameter gr without magazine guide. 70 mm
Small workpiece diameter. 1.5 mm
gr milling length. 40 mm
Gr. To be milled teeth: to 360
kl. to be milled teeth: 5
gr division. Module 1
kl. Division: Module 0.1
Collet: 0,5 - 12 mm
Power main Motor: 0.5 HP
Performance Return Engine: 6.1 hp
Performance magazine Motor: 1/6 hp
With:
- compl. Change gear kit
- one per slide insert
- 1 additional gear for mehrgg. snails
- 1 spindle insert
Despite Year in excellent, clean condition
Price on request.
Delivery: from stock or locational constraints loading truck.
Payment: at acquisition, net or by appointment.
Technical information is not binding. Errors.
We would be pleased if our offer appeals
and are available for your questions at any time at your disposal.
