Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
DÜRR
Model:
Ecoclean 18W/DT 16/10

Specifications

Condition:
used
Year:
1999
Stock number:
106348
Category:
Machine Tools equipment in Germany
Subcategory:
Cleaning machines

Description

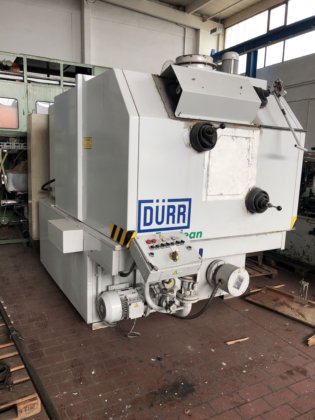

Cleaning plant DÜRR Type Ecoclean 18 W / DT 16/10
Manufacturer no .: 5031 Year of manufacture 1999
Technical specifications:
Workpiece width max .: 700 mm
Workpiece height max .: 600 mm
Max workpiece weight: 1000 kg
Container capacity: 1.5 m³
Working temperature: 45 - 70 °
Pump output: 35 m³ / h
Pump power: 7,5 kW
Pump pressure: 4 bar
Number of hand nozzles: 3
General spray system: on all sides
Rotating table: 1400 mm
Max. Table load: 1,5 t
Rotation speed: 0.3 - 1 rpm.
Max. Feeding: 500 kg
Usable area: 1.5 m²
Weight of plant: 3,0 t
Drive power of the rotary table: 7,5 kW
Power consumption: 57 kW
Water connection: R1 "
Fresh water consumption approx .: 50-100 l / h
Heating capacity: 48 kW
Heating time: 2.2 h
Outside dimensions of the plant: 4460 x 2970 x 3750 mm
With
- loading trolley
- Cover hood closing the treatment room
(2 vertical lifting columns with geared motor)
- rigid injection system
- additional 3 manual nozzles operated from outside
- centrifugal pump with 7.5 kW
- Container volume 1.5 m³
