Location:
Staufenberg, Germany
Manufacturer:
AEG Elotherm
Model:
Elbomat 222 W

Specifications

Condition:
used
Year:
1980
Stock number:
106129
Subcategory:
Edms
Subcategory 2:
Others

Description

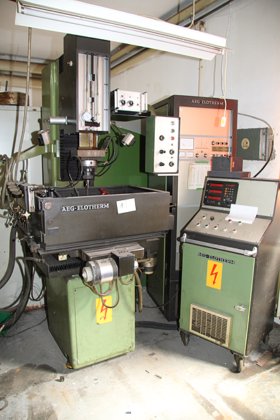

EDM machine Fabr. AEG-Elotherm type Elbomat 222 W
: 224.4009
with generator EP 60 C 2,145,172 and filters F 11 V
Year 1980
Technical specifications:
Displacement X: 300 mm
Adjustment Y: 200 mm
Reading accuracy: 0.01 mm
Table load max .: 400 kg
Table dimensions: 580 x 310 mm
Tank / processing space: 700 x 450 x 265 mm
Max. Liquid height above workpiece carrier: 250 mm
Tank volume capacity: 70 l
Arbeitskopfsenkrechtweg: 200 mm
Head load: 200 kp
Max. Distance between the working head and table:. 480 mm
Depth sensing device: 50 mm
Tiefenabschaltgenauigkeit: - 0.02 mm
Machine external dimensions ca .: 1250 x 1225 x 2150mm
Weight approx .: 1,3 t
With
- Mot coarse adjustment of the working head / W-axis.
- Eloplus-Generaotr type EP 60 C
- Heidenhain TNC 121 Positioning
3 R Orbicut Midi Trome
- Adapter Place
- H 400 system
- Filter F 11 V
needed from operating resolution,
in very good condition
Price on request.
Delivery: from stock or store freely loaded truck.
