1997 MIGATRONIC Pilot 1500 HP
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
MIGATRONIC
Model:
Pilot 1500 HP

Specifications

Condition:
used
Year:
1997
Stock number:
102517
Category:
Machine Tools equipment in Germany
Subcategory:
Welding machines
Subcategory 2:
Tig welding systems

Description

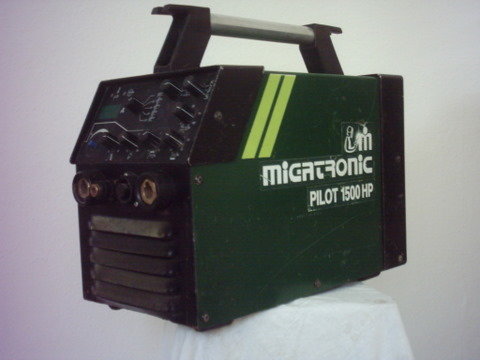

TIG welding machine MIGATRONIC Type Pilot 1500 HP
Year 1997 suitable for TIG welding for steel and VA
Technical specifications:
PRIMARY LINE Power supply: 230 V / - 10%
Fuse: 16 A
Power max .: 2.6 kVA
Efficiency: 0.95
SECONDARY ELECTRICITY Power range DC: 7 - 150 A
Duty cycle 100%: 100 A / 14 V
Duty cycle 60%: 125 A / 15 V
Operating time 35%: 150 A / 16 V
Max. No load voltage DC: 90 V
Max. Lochbogensp. At max. Load: 26 V
Electrode diameter: 1.6 - 3.25 mm
Protection class: IP 23
Temperature class: F
Standard: EN 60974-1 / EN 50199
Current reduction: 0 - 10 s
Gas afterflow: 3 - 30 s
Ignition: HF / LIFTIG
Cooling: IP 23
Dimensions L x W x H: 260 x 20 x 360 mm
Weight approx .: 13 kg
With
- Welding equipment
- Burner
- Ground cable
- Bottle manometer
Used, in good condition
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
