Location:
Staufenberg, Germany
Manufacturer:
Feinmechanik Weilheim
Model:
SO

Specifications

Condition:
used
Stock number:
106002
Subcategory:
Grinders
Subcategory 2:
Other grinding

Description

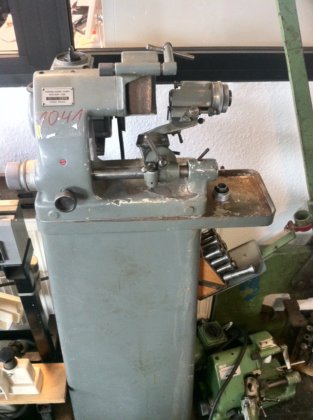

Gravierfräserschleifmaschine Fabr. Precision Weilheim type SO
Masch. Reference: 7012906
Technical specifications:
. Gr slipping to a radius of 10 mm
. Gr lateral displacement of the milling cutters: 10 mm
. Gr longitudinal displacement of the mill holder: 40 mm
. Gr adjustable rear slip angle: 45 °
. Gr bore of collet chuck: 17.5 mm
Grinding spindle speeds: 4500 rpm.
Motor power: 0.25 kW
Dimensions L x W x H: 500 x 420 x 1400 mm
Weight approx .: 67 kg
With
- 9 piece collets
- Undercarriage
Used, in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding. Errors excepted.
