1986 HECKERT F 400 E
Location:
Staufenberg, Germany
Price:
No price
Model:
F 400 E /1120

Specifications

Condition:
used
Year:
1986
Stock number:
103820
Subcategory:
Milling machines

Description

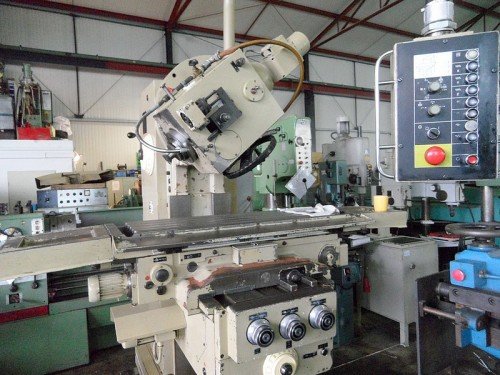

Vertical knee and column milling machine WMW HECKERT Type F 400 E Var 72
Mach. No: 46274/1 Year of manufacture 1986
Technical specifications:
Table area: 400 x 1600 mm
Table swivels by 45 °
Table swivel: - 45 °
Table longitudinal travel X: 1120 mm
Cross-slide cross-way: 345 mm
Consol-vertical travel: 400 mm
Table load max .: 15000 kg
Speed ​​range: 28 - 1400 rpm.
Feed range: longitudinal and transverse: 16 - 800 mm / min
Feed range vertical: 5 - 250 mm / min
Rapid traverse longitudinal and transverse: 3150 mm / min
Rapid traverse vertical: 1000 mm / min
Tool fixture: ISO 50
Drive power: 14.5 kW
Weight: 3850 kg
Outside dimensions: 2400 x 2300 x 1800 mm
With
- Switch cabinet at the side of the machine
- swivelable control panel
- swivelable milling head
Used, in good condition
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
We would be glad if our offer satisfies you
