1992 CHIRON FZ 18 W
Location:
Staufenberg, Germany
Price:
No price
Model:
FZ 18 W Magnum x630

Specifications

Condition:
used
Year:
1992
Stock number:
105653

Description

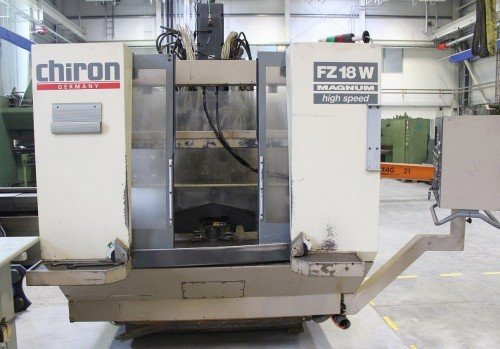

Vert. Machining center CHIRON Type FZ 18 W Magnum high speed
Machine ID: 431-47 Year of manufacture 1992
Technical specifications:
Travel distance X: 630 mm
Travel Y: 400 mm
Travel Z: 425 mm
Distance from spindle center - stand: 435 mm
Distance Spindelnase - Table: 280 - 705 mm
Table size: 1250 x 850 mm
Max. Workpiece weight: 2 x 250 kg
Spindle mount: ISA 40
Number of tools:
Tool diameter: 65 mm
Max. Tool length: 220 mm
Speeds: 20 - 10500 rpm.
Feed rates for all axes: 1 - 4000 mm / min.
Rapid traverse all axes: 20 m / min.
Milling performance ST 60: 300 cm³ / min.
Drilling capacity: 35 mm / rev.
Tapping capacity: M 27
Drive power: 10.5 kW
Ges. Inst. Power: 19.9 kW
Weight approx .: 5,0 t
Outside dimensions approx .: 1800 x 3400 x 3100 mm
With
- Changeover
- several tool shots
- Cooling system
- additional hydraulic tensioning device
For clamping on the table
Used, in good condition
Price on request.
Delivery: ex stock or location free loading truck.
