INDEX ER 25 Einspindel in
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Index lathes
Model:
ER 25 Einspindel

Specifications

Condition:
used
Stock number:
105640

Description

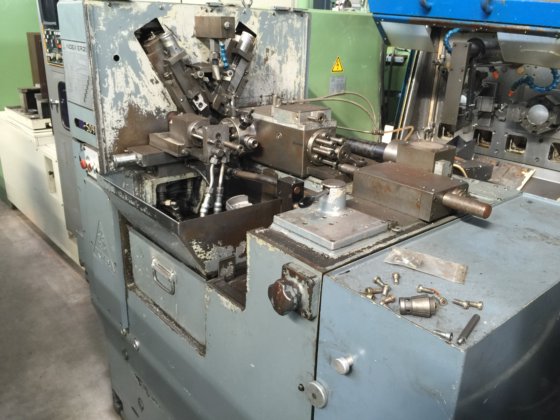

Single spindle automatic reel machine INDEX type ER 25
Machine ID: 25751408
Technical specifications:
Gr. Workpiece passage Drm .: 25 mm
6-edge: 21 mm
Square: 16 mm
Gr. Workpiece feed p. Circuit: 70 mm
Gr. Thread diameter: M 16 / M 14
Speed ​​range: 14 - 5750 rpm.
Number of automatically switchable speeds: 4
Number of high - speed speeds: 26
Number of slow speeds: 234
Turret head diameter: 120 mm
Toolholder: 3/4 "
Turret processing: 60 mm
Distance between clamping jaws - revolver: 60 - 150 mm
Feed rate stepless before: 16 - 2800 mm
Feed speed adjustable infinitely: 40 - 7000 mm / min
Rapid traverse back / forth: 10/25 m / min
Switching time: 0.75 s
Cross-cut work: 44 mm
Longitudinal adjustment of the upper slide: 20 mm
Feedrate infinitely variable of cross section: 5 - 1000 mm / min
Drive power: 4 kW
Dimensions L x W x H: 1900 x 1020 x 1650 mm
Weight approx .: 1650 kg
With
- 8-speed turret
- 2 vertical parting blocks
- 2 horizontal partitions
