Top Seller
1975 STANKOIMPORT 16YO4P 100/350 in
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Stankoimport lathes
Model:
16YO4P 100/350

Specifications

Condition:
used
Year:
1975
Stock number:
103711
Subcategory:
Traditional lathes

Description

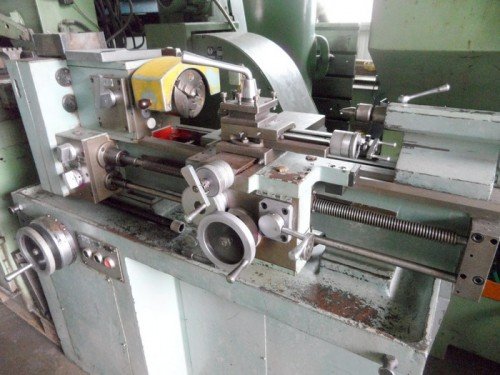

L. Z. + lathe Fabr. STANKOIMPORT type 16Y04N
Fabr. # 6519, built in 1975
Technical specifications:
Center height: 100 mm
Distance between centers: 350 mm
Spindle speeds: 70 - 3,500 rpm
Spindle bore: 20 mm
Feed threading: 0.08 to 0.04 mm
Feed lead screw: 0.32 to 0.16 mm
External dimensions L x W x H: 1400 x 700 x 1250 mm
With:
- three-jaw chuck 130 mm
- chuck protection
- live center
- lamp
- different collets.
- Pull bar
- 4-fold toolholder
needed, from an operating resolution
in good condition
Price on request.
Delivery: from stock or locational constraints loading truck.
Payment: at acquisition, net or by appointment.
Technical information is not binding. Errors.
We would be pleased if our offer appeals
and are available for your questions at any time at your disposal.
Best regards
M. Waldeck
