1988 ARAD SN 401 215/750
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
ARAD
Model:
SN 401 215/750

Specifications

Condition:
used
Year:
1988
Stock number:
103899

Description

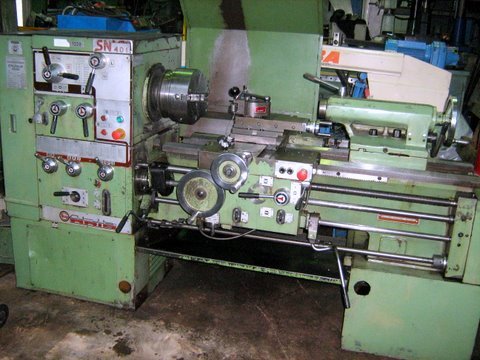

L. + Z. lathe Manufacturer ARAD Type SN 401
Machine # 88 SN 7 F 334 Year of manufacture 1988
Technical specifications:
Top height: 215 mm
Tip width: 750 mm
Swing diameter over bed: 430 mm
Rotation diameter over support: 240 mm
Spindle bore: 65 mm
18 Spindle speeds: 32-1600 rpm.
66 Feed lengths: 0.8 - 2 mm / rev
66 feeds transversal: 0.05 - 0.85 mm / rev
35 metric threads: 4 - 88 mm
37 WW thread: 88 - 1 Gg / 1 "
35 Module threads: 0.25 - 44 M
34 DP thread: 176 - 2 DP
Drive power: 7.5 kW
Dimensions L x W x H: 2200 x 1000 x 1600 mm
Weight approx .: 2300 kg
With
- three-pack rotary forchard FORKARDT
- Multifix steel holder with several inserts
- Rev. stop
- co-rotating core tip
Used, in good condition
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
We would be glad if our offer satisfies you
And are always at your disposal for your questions.
