Location:
Staufenberg, Germany
Price:
No price
Model:
Kombi 1000 /650

Specifications

Condition:
used
Year:
1974
Stock number:
100185
Subcategory:
Milling machines

Description

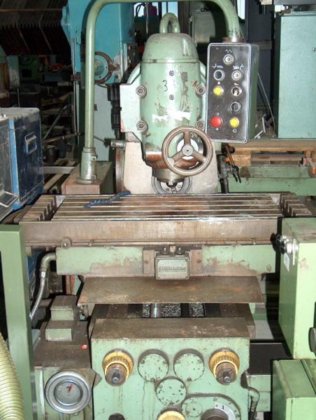

Univ. Milling machine RECKERMANN Type Kombi 1000
Year of construction 1974
Technical specifications:
Lateral movement of the table: 340 mm
Vertical movement of the table: 400 mm
Table size: 1000 x 400 mm
With 5 T-slots according to DIN, width: 18 mm
Distance: 70 mm
Longitudinal travel: 700 mm
Distance from spindle nut to bottom edge: 145 mm
Projection Horizontal center of spindle up to table: 0 - 400 mm
Projection Vertical spindle to table: 0 - 500 mm
Distance from vertical spindle center to main stand: 100 - 500 mm
Rotations of the working spindle 16 Dr. Horizontal: 32 - 2800 rpm.
16 Dr. Vertical: 32 - 2800 rpm.
Feeds for all three directions infinitely
Longitudinal: 15 - 600 mm
Transversely: 15 - 600 mm
Vertical: 6 - 240 mm
Rapid traverse for all three directions of movement: 2000 mm
Transversely: 2000 mm
Vertical: 800 mm
Total engine power: 9.6 hp
Weight approx .: 2700 kg
Overall height: 1740 mm
Used, from operating resolution, in good condition
Price on request.
Delivery: ex stock or location free loading truck.
