Location:
Staufenberg, Germany
Model:
Consa 1300 S /1000

Specifications

Condition:
used
Year:
1992
Stock number:
103118
Subcategory:
Milling

Description

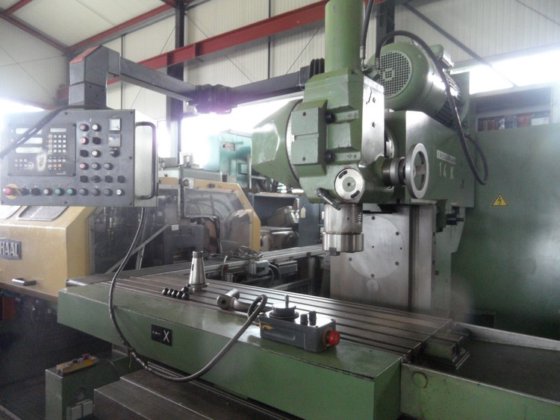

Vertical Milling Fabr. RECKERMANN type Consa 1300 S
Masch. # 8047 Year 1992 with Heidenhain TNC 114
Technical specifications:
Table size: 1370 x 400 mm
5 T-slots
Table height above floor: 890 - 1340 mm
Tischlängsweg = X hand / automat .: 1020/1000 mm
Tischquerweg = Y manually / automatic .: 320/300 mm
Tischsenkrechtweg = Z manual / automatic .: 450/430 mm
Distance spindle center-Ständergleitfläche: 800 mm
Distance spindle center-rear edge of the table: 150 - 800 mm
Max. Workpiece weight: 500 kg
Spindle taper: ISO 50
Quill stroke: 120 mm
Spindle pivotability: doppelschwenkbar
Spindle speeds 40 - 2000 rpm.
Feeds continuously X and Y: 10 - 1000 mm / min
Continuously feeds Z: 4 - 400 mm / min
Rapid feed X and Y: 5 m / min
Rapid Z: 2 m / min
Spindle vertical: 11 kW
Feed: 3,9 kW
Coolant pump: 0.2 kW
Hydraulics: 0.75 kW
Total power requirement: 15,85 kW
Dimensions L x W x H: 2300 x 2000 x 2200 mm
Weight approx .: 4700 kg
With
- Starting or path control HEIDENHAIN TNC 114 ...
