Location:
Staufenberg, Germany
Manufacturer:
GUALDONI
Model:
G 61 Z /550

Specifications

Condition:
used
Year:
1976
Stock number:
103730
Subcategory:
Milling

Description

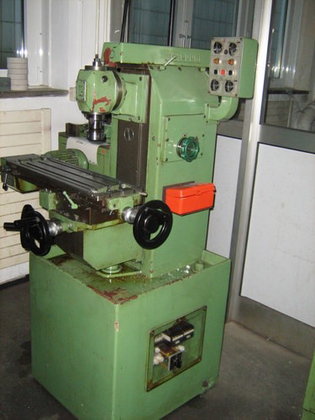

Universal milling machine Fabr. GUALDONI type G 61 Z
Masch. # 493 Year 1976
Technical specifications:
Table dimensions: 640 x 200 mm
automat. Longitudinal table travel = X: 550 mm
you. Tischquerweg = Y: 155 mm
Tischsenkrechtweg = Z: 350 mm
8 spindle speeds: 50 - 1500 rpm.
8 automat. Feed along: 30 - 340 mm / min
Projection of the vertical head: 165 mm
Distance spindle nose to worktable: 245 mm
Swivel range of vertical head: 90 °
Motor power: 1.5 HP
Feed motor: 0.65 hp
Dimensions L x W x H: 950 x 1000 x 1600 mm
With
- Vertical milling
- Cooling device
Used, in excellent condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding. Errors excepted.
We would be pleased if our offer appeals
and are available for your questions at any time at your disposal.
Best regards
M. Waldeck
