Location:
Staufenberg, Germany
Manufacturer:
Reis
Model:
60 A 10 H

Specifications

Condition:
used
Year:
1966
Stock number:
16465

Description

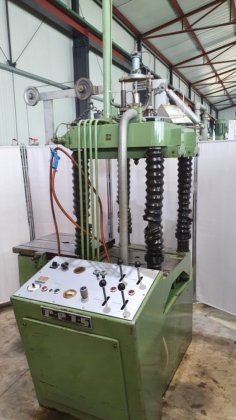

Spotting Fabr. REIS Type 60 A 10 H
Masch. # 177/66, built in 1966
Technical specifications:
Table size: 590 x 600 mm
Max. Form surface: 600 x 1200 mm
Max. Mold height: 680 mm
Max. Mould weight: 2,5 t
Stroke of the table: 500 mm
Ejection: 200mm
Ejection at 100 atm oil: 2000 kg
Pressing force continuously: 0 - 10 t
Controllability on: 1/100 mm
Swing radius of the upper Abschwenkplatte: 92 °
Lifting speed continuously: 0 - 80 mm / s
Carrying capacity of the upper pivot plate: 1500 kg
Endurance of the carriage plate: 2500 kg
Height of the pillar guide: 245 mm
Injection volume: 2.5 l
Spec-injection pressure: 2 - 15 kg / cm
Motor power: 5.5 kW
Heating capacity: 1.2 kW
Air connection: 2 - 15 atm
Dimensions L x W x H: 1420 x 1360 mm 2810
Weight approx .: 2300 kg
With
- Experimental spraying device
- Heating
- ejector
- Removable top panel meters. hydr. lock
little used in operating resolution
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by ...
