1994 HEINRICHSGLÜCK RBSM 1 Rohrbrenn in Staufenberg, Germany

Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
HEINRICHSGLÜCK
Model:
RBSM 1 Rohrbrenn

Specifications

Condition:
used
Year:
1994
Stock number:
101260
Category:
Machine Tools equipment in Germany
Subcategory:
Welding machines

Description

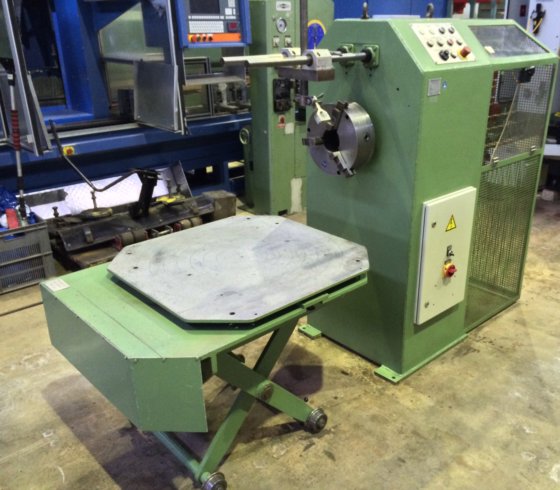

Pipe - cutting machine HEINRICHSGLÜCK Type RBSM 1
Komm.-Nr. 4026, machine no. 207086, year of construction 1994
Technical specifications:
CUTTING MACHINE:
Workpiece diameter: 100 - 600 mm
Throttle chuck external / internal tension: 193 - 321 mm
Working distance: 8 - 136 mm
Internal tension: 74-201 / 188-315 mm
Burning amplitude: 0-276 mm
Burning diameter: 0 - 390 mm
Rotary drive Motor power: 0,21 kW
Speed: 5.7 rpm
Cutting speed: 50 - 1800 mm / min
Working height: 1140 mm
Total height: 1620 mm
Width (feet): 700 mm
Control: PLC S5-95:
Lifting table:
Carrying capacity: 800 kg
Table height: 350 - 840 mm
Centering glands Drm .: 200 - 900 mm (every 100 mm)
Table size: 860 x 860 mm
Swivel stroke (manual): 90 °
Lifting motor: 1.1 kW
Lifting time approx .: 47 sec.
End limit: 2 limit switches
Drive: manual
Wheel diameter: 80 mm
Track width: 580 mm
Rated voltage: 380 V
Rated operating current: 2 A
CONSTRUCTION:
2 roller blocks, roll diameter: 130 mm
Distance between rollers: 580 mm
With
- Control PLC S 5.95
Little used, in good condition
