Location:
Staufenberg, Germany
Manufacturer:
Stanko gear cutting
Model:
5 A 308 P Wälzfräs

Specifications

Condition:
used
Stock number:
50108
Subcategory:
Hobbing
Subcategory 2:
Gear cutting machines

Description

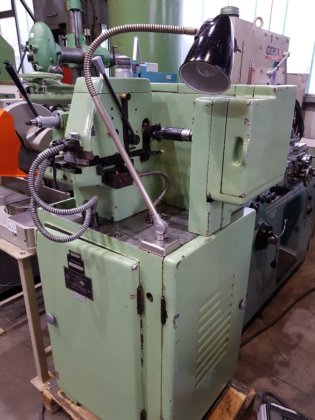

Gear and spline hobbing machine Fabr. STANKO 5A308 Type P
Masch. # 554
Technical specifications:
kl./gr. Workpiece diameter: 0/80 mm
gr module. 1.0 mm
kl./gr. Teeth d.zu interlocking wheels: 400
Adjustment of the milling slide: 82 mm
Cutter diameter: 24-30 mm
. Gr swivel angle of the cutter spindle: 3 °
Workpiece spindle taper bore: 1: 5
maximum spindle speed: 4 U / min
Number of Frässpindelgeschwindigkeiten: 6
Field of Frässpindeldrehzahlen: 202-2040 U / min
7 feeds: 0.1 to 1.42 mm
Eilverstellungsgeschwindigkeit: 0.94 m / min
AC motor for the main drive: 0.5 kW
Speed: 1500 rev / min
External dimensions: 675 x 730 x 1450 mm
Weight approx: 470 kg
With
- Compl. change gears
Used, in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding. Errors excepted.
