WMW GI 8/IV in Staufenberg,
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
WMW Heckert
Model:
GI 8/IV

Specifications

Condition:
used
Stock number:
50154
Subcategory:
Others
Subcategory 2:
Threading machines

Description

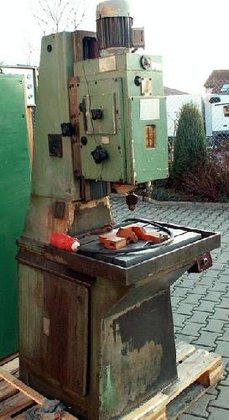

Vertical tapping machine Fabr. WMW GI type 8 / IV
Technical specifications:
Workspace in ST 60 and GG 18: M 4 - M 8
in brass, hard: M 4 - M 10
in light metal, soft: M 4 - M 12
kl. Pitch: 0.35 mm
. Corresp inch Gradient: 72 G / "
gr pitch. 1.75mm
. Corr inch pitch: 14 G / "
Height adjustment of the headstock: 280 mm
Distance gr spindle head to table. 355 mm
Table size: 480 x 570 mm
Projection: 340 mm
Spindle gr. 50 mm
Spindle speeds: 180 - 1400 rpm
Gr. Number of work cycles per hour: 2400
Motor power: 0.6 kW
Dimensions: 850 x 700 x 1800 mm
Weight approx .: 500 kg
With:
- control panel right of the machine
- 6 change gears: 1 x 6, 1 x 11, 2 x 12, 1 x 13, 1 x 14
used, in good condition
Price on request.
Delivery: from stock or locational constraints loading truck.
