1981 ALZMETALL Abomat 30 in
Location:
Staufenberg, Germany
Price:
No price

Specifications

Condition:
used
Year:
1981
Stock number:
50581
Subcategory:
Borers
Subcategory 2:
Drilling and milling

Description

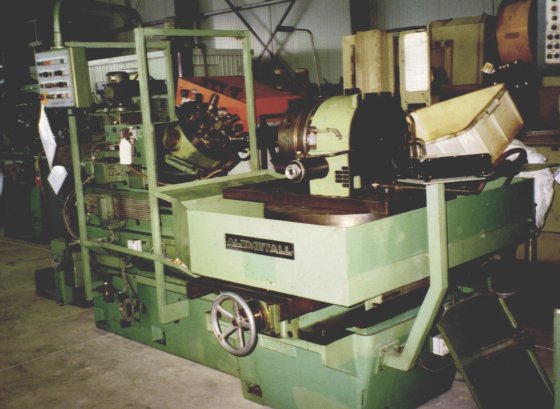

High-performance horizontal boring machine factory ALZMETALL type Abomat 30
Factory # 346, year of manufacture 1981
Technical specifications:
revolver drill head
Number of tool holders: 6-fold
Drilling capacity: 35 mm
Throat: 330 mm
Spindle support: MK 4
Longitudinal table: size 500
Adjustment travel: 540 mm
Rotary table
Operation: manual-hydraulic
Diameter: 600 mm
Further techn. Dates:
Working length min / max .: 470/1170 mm
Insertion height of the workpiece: 1223 mm
Main engine: 3.2 kW
Hydraulic motor: 1,5 kW
Feed power: 1.1 kW
Overall dimensions: 3000 x 1700 x 2100 mm
Space requirement incl. Hydraulics and control cabinet approx .: 4000 x 3000 mm
Weight approx .: 2,5 t
With
- 6-speed turret head type ARBO 30
- Sub-unit
- FIBRO rotary table
- FORKARDT F 400 forage
- Carriage transversely displaceable with digital display HEIDENHAIN
- separate hydraulics REXROTH
- Electrical cabinet
- Telescopic steel cover of the guideway
- Central lubrication
- swiveling operating arm
- Protective cover, coolant and chip collector
