Location:
Staufenberg, Germany
Manufacturer:
Eisele
Model:
LMS D 450 /5000

Specifications

Condition:
used
Year:
1989
Stock number:
50583
Subcategory:
Double head
Subcategory 2:
Aluminum and window

Description

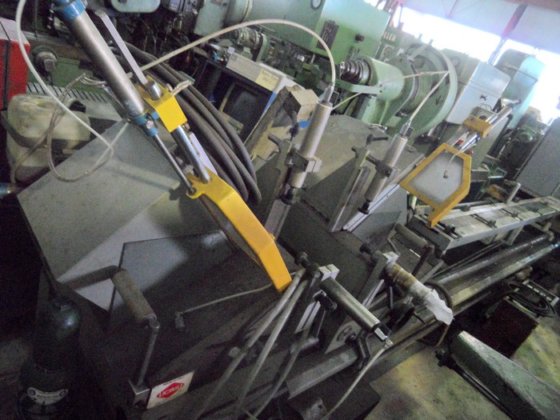

CNC Twin-Fabr. PRESSTA EISELE LMS D Type 450/500 Centro
. Masch No: 140009, year 1989
Technical specifications:
Saw blade diameter: 450 x 4 x 32 mm
Cutting length: 5000 mm
Cutting range 90 ° round: 150 mm
45 ° round: 150 mm
90 ° square: 265 x 100 mm
or:: 235 x 120 mm
45 ° square: 165 x 120 mm
Feed: infinitely variable
Operating pressure: 6 - 8 bar
Workpiece clamping each: 2 pneumatic cylinders::: horizontal and vertical
Adjustment of the units: pneumatically
Positioning via PC Olivetti Type: M 24 HD
Section lengths min / max .:: 235/5000 mm
Cutting speed: 66 m / sec.
Drive power 2 AC motors: a'2,25 kW
External dimensions: 7000 x 1500 x 1600 mm
Color gray
With
- CNC OLIVETTI M 24 HD
- Technical documents
Used, in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding ....
