Location:
Staufenberg, Germany
Manufacturer:
FDF FRITZ DÜSSELDORF
Model:
Induktions-Lötanlage

Specifications

Condition:
used
Year:
1990
Stock number:
14561
Subcategory:
Others

Description

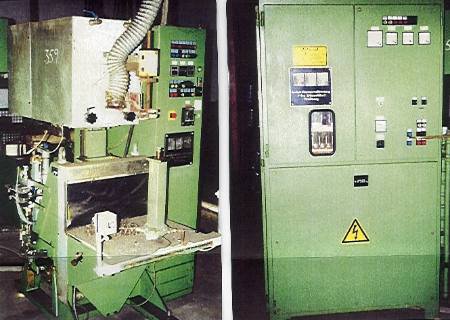

Induction soldering FDF Fritz Dusseldorf
Built in 1990 consisting of:
1) Soldering Table Type LT Nr. 25-18080.90 Year 1990
1 lifting station Projection: 400 mm
Distance table - soldering unit: 650 mm
electr. Connection: 380 V, 63 A
Power rating: 35 kVA
Dimensions: 1600 x 1200 x 1900 mm
2.) Inpatient parallel Schwingkreisumrichter type PSU 30-10
Fabr. # 90 65.18601-
Max. Power: 30 kW
Frequency range: 8 - 10 kHz
Power rating: 41 kVA
electrical connection: 380 V
Dimensions: 1100 x 1100 x 2200 mm
3.) cooling unit Vicarb Germany, built in 1987
Masch. # D 1044
Operating pressure: 10 bar
Power: 56 kW
Weight approx .: 186 kg
Dimensions: 1200 x 1200 x 1030 mm
Previous total operation time: 7770 hours of operation
equipped with:
- Adjustable heating
- Adjustable heating cycles
- Adjustable interval time
little used, in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are ...
