Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Trumpf
Model:
CS 75 - 8206

Specifications

Condition:
used
Stock number:
14707
Category:
Machine Tools equipment in Germany

Description

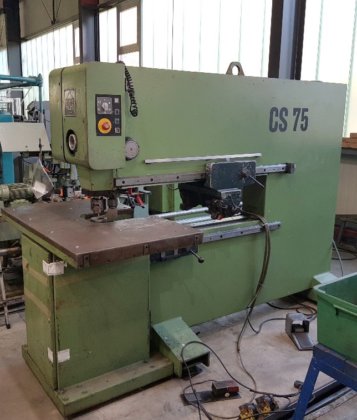

Coordinate Nibbling Machine TRUMPF Type CS 75 - 8206
# 902
Technical specifications:
Throat X: 1300 mm
Throat Y: 1000 mm
Max. Working range (without re-clamping): 1000 x 2000 mm
Max. Punching force: 7,5 t
Max. Punching diameter: 70 mm
Max. Sheet thickness during punching: 3 mm
Max. Sheet thickness during nibbling: 6 mm
From the edge
With 12 mm drm. Nibbling punch: 6 mm
With 12 mm square edge Nibble punch: 5 mm
From the inside without pre-drilling
With 12 mm drm. Nibbling punch: 5 mm
With 12 mm square edge Nibble punch: 5 mm
Max. Thickness of sheet when slitting: 7 mm
Max. Sheet thickness during shearing
From edge: 9 mm
From the inside without pre-drilling: 8 mm
Max. Sheet thickness for gills: 4 mm
Max. Thickness of the sheet: 4 mm
Max. Thickness of the sheet: 3 mm
Max. Sheet thickness: 4 mm
Max. Thickness: 6 mm
Stroke length: 11 mm
Number of strokes: 330/500/1000 1 / min
Engine power: 2,5 / 2,3 / 3,0 kW
Electrical connection: 65 kVA
Pneumatic: 6 bar / max.
Dimensions: 2450 x 2080 x 950 mm
Weight approx .: 2500 kg
With
Used, in good condition
