1988 INGERSOLL IC 263 in
Location:
Staufenberg, Germany
Price:
No price
Model:
IC 263

Specifications

Condition:
used
Year:
1988
Stock number:
15383
Subcategory:
Edms
Subcategory 2:
Machinery

Description

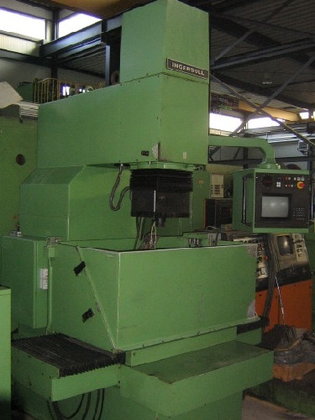

CNC Counterbore Machine INGERSOLL Type IC 263
Mach # 571304 Year of manufacture 1988
Technical specifications:
Table surface: 1000 x 525 mm
Max. Workpiece load: 2500 kg
Travel distance X: 700 mm
Travel Y: 400 mm
Pinlet stroke Z: 400 mm
min / max. Distance table - quill: 350/750 mm
Tool carrier dimensions: 350 x 310 mm
Measurement resolution: 0.001 mm
Planetary radius mx .: 5 mm
Pinol diameter: 220 mm
Max. Head load: 1500 kg
Recommended erosion load limit: 1000 kg
Feed speed max .: 600 mm / min
Dimension of the working container: 1300 x 750 x 550 mm
Capacity: 535 l
Total quantity of dilectum: 750 l
Delivery volume flushing pump: 25 l / min
Delivery volume filling pump: 200 l / min
Connection power: 9,5 kVA
Power supply: 380 V / 3 Ph / 50 Hz
External dimensions of the generator: 1950 x 2260 x 2900 mm
With
- Generator M 60 DC 5 kVA
- electrical measurement indicator f.d. Eroding of the quill
- Dialog DC-CNC planetary control PLT TV
(Color Graphic dialog)
- separate supply unit with hydraulic and flushing system
- various
