1977 THEIS 3/30-60 H 80
Location:
Staufenberg, Germany
Manufacturer:
THEIS
Model:
3/30-60 H 80 Winkelsch.

Specifications

Condition:
used
Year:
1977
Stock number:
16865
Subcategory:
Shearing
Subcategory 2:
Other scissors

Description

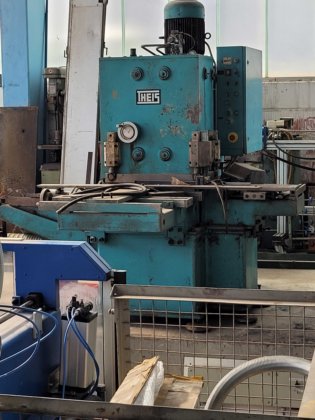

Angle shears Fabr THEIS type 3/30 -. 60 H 80
Masch. # 1085/77, Year 1977
Technical specifications:
Sheet thickness at 42kp / mm max .: 4 mm
Cutting dimensions max .: 300 x 600 mm
Working speed (continuous stroke without load): 92 / min.
Stroke: 26 mm
Knife angle: 1.5 °
Down device: mechanical
Opening width between the upper guide and knife table: 6 mm
Hydraulic operating pressure: 300 bar
Oil tank: 300 Ltr.
Terminal voltage: 380 V / 50 Hz
Engine power: 15 kW
Drive power conveyor belt: 0.55 kW
Ate mass approx .: 2200 x 2300 x 2200 mm
With
-. Front table 200 x 500 and 200 x 725 mm
with verstellb. page rash
- Back gauge manually 0 - 500 mm
- Blade gap adjustment
- Conveyor belt with scrap Soft
- Instruction manual
Used in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding. Errors excepted.
