KUHLMANN GM II 3 D
Location:
Staufenberg, Germany
Manufacturer:
KUHLMANN
Model:
GM II 3 D

Specifications

Condition:
used
Stock number:
14103
Subcategory:
Others

Description

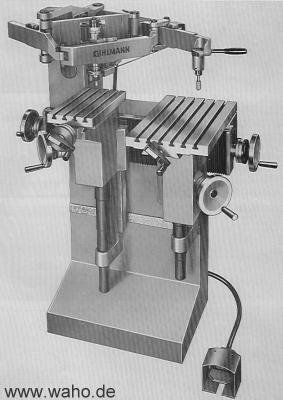

Pantograph Nachformfräsmaschine Fabr. KUHLMANN type GM II 3 D
Masch Nr. 088 050
Technical specifications:
Area of ​​working table: 200 x 350 mm
Max. Distance mills - worktable: 375 mm
Cross adjustment: 350 mm
Horizontal adjustment: 155 mm
Max. Workpiece weight: 500 kg
Surface of the model table: 320 x 500 mm
Cross adjustment: 180 mm
Horizontal adjustment: 150 mm
Max. Distance stylus - Model table: 160 mm
Einstellverhältnis the pantograph: 1:15 to 1:10
28 speeds: 450-19600 U / min
Graviertiefenzustellung: 1 mm
Probing: 5 mm
Formgravierbereich: 11 mm
Collets: 2,5 - 10 mm
Motor power: 450 W
External dimensions: 1270 x 1250 x 1530 mm
Weight approx .: 585 kg
little used, in very good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding. Errors excepted.
