1985 SCHLEICHER RMS 6-70 in
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Schleicher
Model:
RMS 6-70

Specifications

Condition:
used
Year:
1985
Stock number:
14046
Category:
Machine Tools equipment in Germany
Subcategory:
Machinery

Description

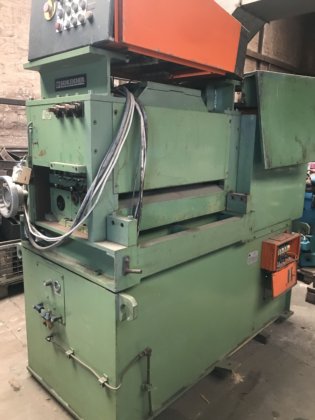

Motorized Straightening Machine Manufacturer: SCHLEICHER Type RMS 6-70
Mach. No: 8682393 Year of manufacture 1985
Technical specifications:
Bandwidth of: 160-800 mm
Material thickness: 0.4 - 3 mm
Belt speed: 4 - 20 m / min
2 feed rollers with diameter: 160 mm
6 straightening rollers with diameter: 70 mm
Distance between rollers: 76 mm
Band thickness less than 0.8 mm with limited directional effect
Machine frame in stable welding design
Support rollers for prevention of straightening roll deflection
Rolls hardened and ground
Band side guide at the inlet by two centrally
Width adjustable guide pulleys with width indicator
In handwheel
Roller adjustment Feeding the upper feed roller
Infinitely pneumatic
Belt transport by driving both feed rollers and the
Lower straightening rollers
Drive by continuously variable transmission, reversible,
With servo motor for speed adjustment with
speedometer
Loop control with light barriers "on-off-fast-
