1984 RIBON RUR-E-1000 in Staufenberg,
Location:
Staufenberg, Germany
Manufacturer:
RIBON
Model:
RUR-E-1000

Specifications

Condition:
used
Year:
1984
Stock number:
16092
Subcategory:
Grinders
Subcategory 2:
Cylindrical grinders

Description

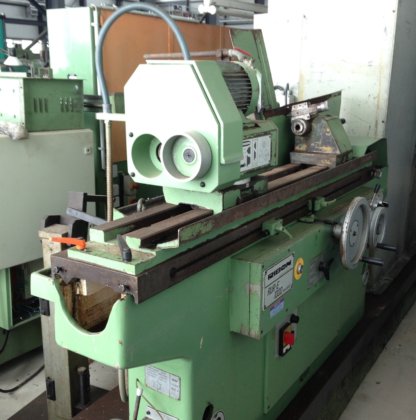

Cylindrical Grinding Fabr. RIBON type RUR-E-1000
Year 1984
Technical specifications:
Peak distance: 1000 mm
Centre height above table: 160 mm
gr grinding diameter:. 320 mm
höchstzul. Weight between centers: 70 kg
höchstzul. Weight flying: 20 kg
Normal size of the grinding wheel: 355 (410) mm x32x127
höchstzul. Width of the grinding wheel: 60 mm
Drm. the workpiece spindle bore: 24 mm
Morse taper of the workpiece spindle: no. 4
Morse taper of tailstock: no. 3
Morse taper of Reducers sleeve of the workpiece spindle head: no. 3
Rotational speed of the grinding spindle: 1700/2100 U / min.
Rotational speed of the workpiece spindle: 35-310 U / min.
Table feed: 190-300-380-470-600-940 mm / p.m
automatic grinding wheel feed p. Table revolution: 0,005-0,01-0,015 mm
Grinding wheel movement by hand lever: 0,005 mm
Grinding wheel movement with every tick of the handwheel: 0,005 mm
Micro-fine feed per stroke: 0,001 mm
Pivoting of the table to taper grinding between
centers: + / -...
