1999 IXION PC 1 -
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Ixion
Model:
PC 1 - 6000 BT 30 ST / GSE

Specifications

Condition:
used
Year:
1999
Stock number:
16689
Subcategory:
Drills
Subcategory 2:
Drilling machines

Description

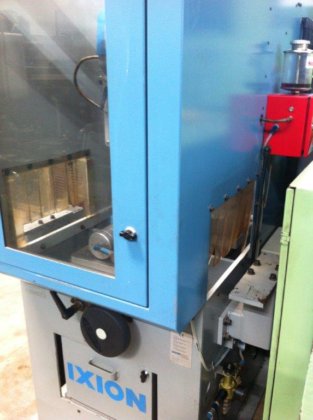

CNC Linear Drilling and Threading Machine Manufacturer IXION Type PC 1-6000 BT 30 ST / GSE
Year of manufacture 12/1999 for long section processing
Technical specifications:
Continuous drilling: 30 mm
Standard drilling: 35 mm
Tapping performance up to: M 30
Spindle mount: MK 3
Spindle speeds infinitely variable: 160 - 2800 rpm.
Feed length: 6000 mm
Throat: 280 mm
Drilling depth: 150 mm
Distance between spindle and table: 220-600 mm
Rapid traverse: 6 m / min
Column diameter: 120 mm
Acceleration: + - 0.1 mm
Table area: 390 x 420 mm
Workpiece weight: 60 kg
Drive power: 1.3 / 2.3 kW
Dimensions: 9500 x 1500 x 1850 mm
With
- hydr. Pneumatic feed unit VF 22/6000 mm
- Height adjustment from the front
- Anti-twist device
- Minimum quantity lubrication system
- Thread cutting device
- digital depth and speed display
- Transversal travel of the drilling unit 250 mm programmable
- one-sided pneumatic vice
- Pinion feed unit for semi-automatic drilling, infinitely variable
