1980 HABEGGER REV 80/8 Revolver
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
HABEGGER
Model:
REV 80/8 Revolver

Specifications

Condition:
used
Year:
1980
Stock number:
17101

Description

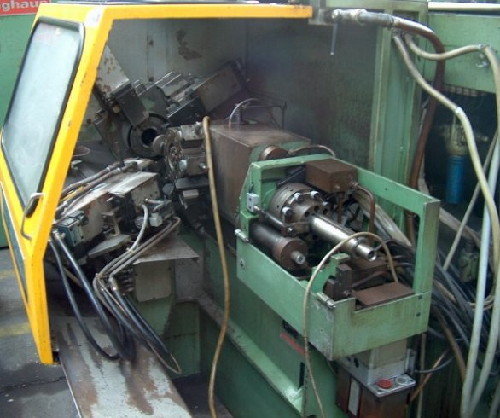

Revolver Turning Machine Manufacturer HABEGGER Type REV 80/8
Mach. # 80-01-04 Year 1980 with electr. Programming via cross rail distributor
Technical specifications:
Material diameter: 80 mm
Feed diameter: 160 mm
Revolver: 8-speed
Working path turret: 160 mm
Feed speed turret: 5 - 8000 mm / min
Rapid traverse: 15000 mm / min
Crossing path: 100 mm
Feed rate cross-cut: 5 - 8000 mm / min
Rapid traverse of cross section: 22000 mm / min
Longitudinal slide travel: 300 mm
Max. Copying diameter: 160 mm
Copy inside diameter max .: 100 mm
Max. Thread spacing: 80 mm
Threaded metric: 0.5 - 5 mm
Tightenings WW: 28 - 5 Gg / 1 "
16 Spindle speeds: 52 - 4000 rpm.
Engine power: 7 kW
Hydraulic pressure: 40 bar
Hydraulic pump: 3 kW
Dimensions approx .: 2400 x 1400 x 2000 mm
Weight approx .: 3400 kg
With
- Programming device via crossbar distributor
- electric revolver 8-speed
- 3 crosses
- 1 longitudinal slide with copying device
Hydr.
