Location:
Staufenberg, Germany
Manufacturer:
ARO
Model:
MOS 2-2325 DDC

Specifications

Condition:
used
Year:
1987
Stock number:
16684
Subcategory:
Welding machines
Subcategory 2:
Spot welding machines

Description

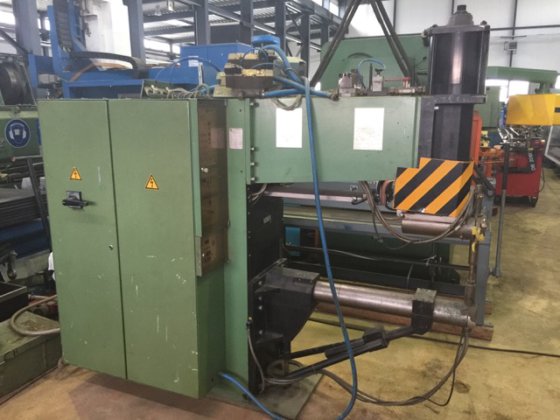

DC spot welding machine Fabr. ARO type MOS 2-2325 DDC
6122352 Year 4/1987 operated Fabr. # Watercooled, pneumatically
Technical specifications:
Rated power at 50% ED: 200 kVA
Duration welding output at 100% duty cycle: 140 kVA
Maximum welding power at 3.07% ED: 806 kVA
Short-circuit current: 80 kA
Throat: 1100 mm
Electrode force at 4 bar: 0-2000 daN
Arm distance: 200 - 450 mm
Feed: 80 mm
Working stroke: 20 mm
Weight approx .: 2800 kg
Dimensions approx .: 800 x 2200 x 2400 mm
With
- Abgestüztem lower arm
- Control Type MTW 8Z6P
- Proportional pressure valve to the electrode force control
- 21 kW, total cooling water coolers, 300 l Type Aqua Cooly.
IK-V18, 100 l at 5.3 bar
- Tank capacity 300 l
- Water flow quantity in 1800 b. 5.3 bar
little used, in very good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding. Errors excepted.
