Location:
Staufenberg, Germany
Model:
BEA 07 X630

Specifications

Condition:
used
Year:
1985
Stock number:
17445

Description

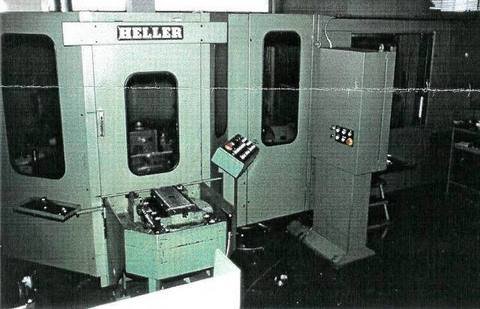

Horizontal Machining Center make. HELLER Type BEA 07
Year 1985
Technical specifications:
Workspace along X: 630 mm
Workspace perpendicular Y: 500 mm
Workspace transversely Z: 560 mm
Table size: 400 x 400 mm
Table pitch: 360 x 1 °
Max. Workpiece weight: 300 kg
Spindle taper: ISA 40
Number of magazine locations: 40
Palette Number: 8
gr tool diameter. 75 mm / 150 mm
Permissible tool weight. 15 kg
Auto. Feed: 1 - 10000 mm / min.
Rapid feed: 12000 mm / min.
Feed force: 7500/12500 N
stufenl. Turning speed: 45 - 6000 r / min.
Engine power: 15 kW
Total power requirement: 45 kW
Weight: 8 t
With
- CNC UNI PRO NC 80 C
- Coolant system
- Chip conveyor
- Pallet pool 8x
- NC rotary table
- Hydr. Unlocking for pallet
- Hydr. Workpiece clamping
- Working space cab
Used, in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding. Errors ...
