Location:
Staufenberg, Germany
Manufacturer:
Weinbrenner
Model:
TSV 6/3050 CNC

Specifications

Condition:
used
Year:
1987
Stock number:
15688
Subcategory:
Shearing

Description

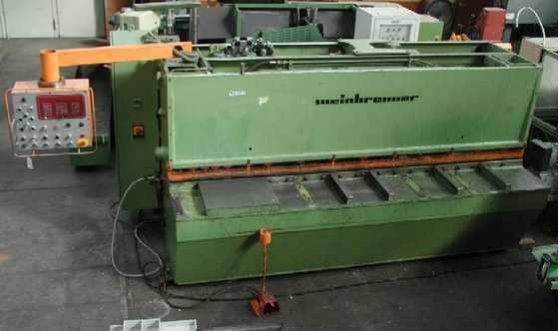

CNC controlled hydr. Guillotine shear Fabr. WEINBRENNER type TSV 6/3050
Masch. # 687 T Year 1987
Technical specifications:
gr working width. 3050 mm
for plates with 45 kg resistance to: 6.0 mm
distance between columns: 3160 mm
possible Throat depth: 200 mm
Cutting angle min./max .: 1/2 °
Backgauge adjustment: 1000 mm
Number of hydr. Down device: 12
Strokes min./max. (Depending on the average length and thickness.): 22/36 / min
Hydraulic drive: 380 V, 15 kW
Table height over floor: 900 mm
Dimensions incl. Back stop without front
Support arms: 4100 x 2300 x 2100 mm
Weight approx .: 8500 kg
With
- Control in swiveling operation panel CYBELEC CNC 1000
- Compl. electr. Device with controller in large switching
cabinet mounted to one side of the machine
- Control for back gauge programming
- Material quality code
- Sheet thickness preselection
- Stroke length
- Contact cutter
- Scrap Soft
- Switch for single and continuous stroke
- Foot switch with emergency stop
-...
