1985 INGERSOLL IC 112 in
Location:
Staufenberg, Germany
Model:
IC 112

Specifications

Condition:
used
Year:
1985
Stock number:
18373
Subcategory:
Edms
Subcategory 2:
Others

Description

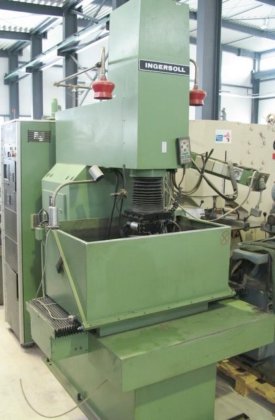

CNC EDM machine Fabr. INGERSOLL type IC 112
Fabr. # 571085 Year 1985
Technical specifications:
Table size: 700 x 440 mm
Load capacity: 1000 kg
Travel X: 450 mm
Y travel: 350 mm
Travel Z: 350 mm
Working capita consumption: 205 x 205 mm
Head load: 600 kg
Erodierlastgrenze: 400 kg
Sleeve diameter: 120 mm
clearance head - table: 300 - 650 mm
Drive: servo-hydraulic.
Working tank Size: 960 x 650 x 400 mm
Capacity: 230 l
Feed speed in 3 axes: 600 mm / min
Capacity Hydraulic: 40 l
Supply voltage: 380 V, 50 Hz
Power consumption: 5 kVA
Dimensions L x W x H: 2885 x 2000 x 1950 mm
Weight approx .: 2200 kg
Air flow irrigation pump: 25 l / min
Air flow filling pump: 130 l / min
Total Dielectric: 400 l
Filter area: 4 m / 2
With
- Control Type M 60 D Rotrons 3 T Heidenhain ME 102
Used, in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
