1988 ALCERA GAMBIN 81 C
Location:
Staufenberg, Germany
Price:
No price
Model:
81 C X800

Specifications

Condition:
used
Year:
1988
Stock number:
18390
Subcategory:
Milling machines
Subcategory 2:
Cnc milling machines

Description

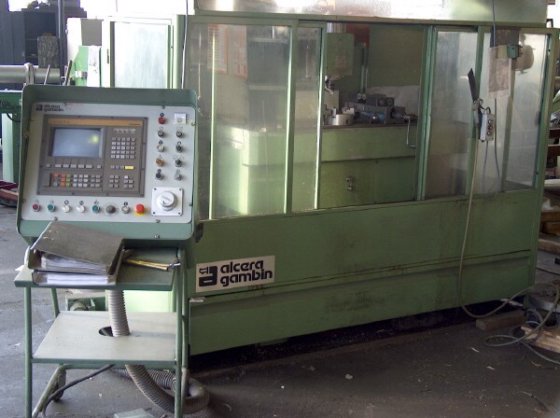

CNC Milling Machine Manufacturer: ALCERA GAMBIN Type 81 C
Model # 11619 D Year of manufacture April 1988
Technical specifications:
Table size: 1300 x 400 mm
Spindle mount: ISA 40
Table length X: 800 mm
Upper arm transverse path Y: 620/500 mm
Vertical support bracket Z: 630 mm
Tool holder: ISA 40
Stepless spindle speeds: 15 - 3890 rpm.
Stepless feeds all axes: up to 5000 mm / min.
Max. Feed force: 1300 daN
Rapid traverse: 5 m / min.
Tool changer n .: 24 Wkzg.-Aufn.
Max. Tool diameter: 85/150 mm
Max. Tool length: 300 mm
Max. Tool weight: 8 kg
Total connection: 16 KVA
Drive power: 10 kW
Dimensions L x W x H: 2500 x 2560 x 2360 mm
Weight approx .: 3800 kg
With
- Controller SIEMENS Type 810 M
- Vertical head automatically swivels vertically / horizontally
- Tool changer 24-speed
- Vertical milling head with automatic positioning
- High pressure clamp
- Round table
Attention: for the service of this machine is
The company HURON!
Used, from a working resolution, in good condition
Price on request.
