1987 AGIE Agietron 200 C in Staufenberg, Germany

Top Seller

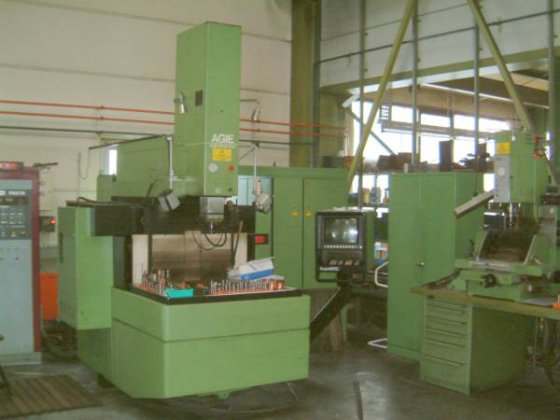

1987 AGIE Agietron 200 C
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Agie edm machines
Model:
Agietron 200 C

Specifications

Condition:
used
Year:
1987
Stock number:
100650
Subcategory:
Edms
Subcategory 2:
Machinery

Description

CNC Counterbore Machine Model AGIE Type Agietron 200 C
Series 03, unit 04, equipment list 356804.5 Year of manufacture 1987
Technical specifications:
Travel distance X: 500 mm
Travel Y: 350 mm
Travel Z: 500 mm
Support surface: 800 x 630 mm
Max. Workpiece dimensions: 1000 x 700 x 320 mm
Working container internal dimensions: 1070 x 740 x 420 mm
Workpiece weight approx .: 1200 kg
Electrode weight max .: 400 kg
Distance table - quill: 180/680 mm
Positional deviation (PA): 0.005 mm
Average positional width (PS): 0,003 mm
Average reverse span (u): 0.002 mm
Resolution: 0.001 mm
Number of flush connections: 10
Manual flushing: 1/20 l / min
Automatic dosing spray: 8 / 3-800 ml / min
Operating mode: Multi-tasking
Simultaneously controllable axis: 4
Simultaneously controllable rotary and linear axes: C with X, Y, Z
Memory capacity: 3.5 ", MS-DOS, 720 KBytes
Screen: Color 14 "
Interface: RS 232 / CV 24
Rated current: 60 A
Removal rate: 450/590 mm3 / min
Number of channels: 1
Agiepuls 90 M I Rated current: 90 A
