Location:
Staufenberg, Germany
Price:
No price
Model:
Maho MH 600 E 2

Specifications

Condition:
used
Year:
1989
Stock number:
102095
Subcategory:
Milling machines
Subcategory 2:
Cnc milling machines

Description

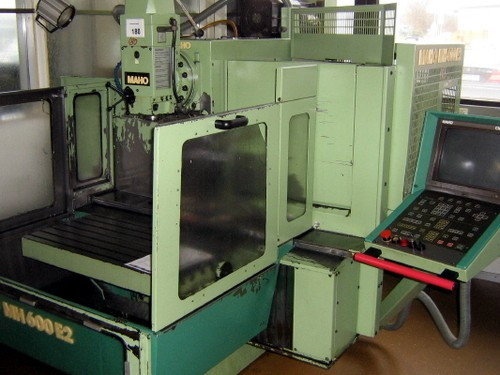

CNC milling machine MAHO type MH 600 E2
Mach # 64903, year of construction 1989
Technical specifications:
Working range X: 600 mm
Working range Y: 400 mm
Working range Z: 450 mm
Tool holder: ISO 40
Quill stroke vertical: 80 mm
Spindel speeds directly programmable: 20 - 4000 / min.
Feed range in X, Y and Z: 1 - 4000 mm / min
kl. user programmable. Feed rate in X, Y and Z: 0.1 mm / min
Rapid traverse X and Z: 6 m / min
Rapid traverse Y: 5 m / min
Measuring system photoelectric Resolution in X, Y and Z: 0.001 mm
Rigid angle table: 900 x 460 mm
7 T-slots: 14 H 7
T-slot spacing: 63 mm
Max. Workpiece weight: 400 kg
Tool changer and magazine: 20 tools
Max. Tool diameter: 100 mm
Max. Tool length: 250 mm
Max. Tool weight: 6 kg
Drive power 380 V 50/60 Hz: 12 kVA
Weight approx .: 3350 kg
Outer mass L x W x H: 4700 x 4800 x 2140 mm
With
- Control MAHO CNC 432
- Tool changer 20-speed
- Cooling system
- Machine light
- Spray booth
Used, from operating resolution, in good condition
