Location:
Staufenberg, Germany
Price:
No price
Model:
WMC 610 X610

Specifications

Condition:
used
Year:
1994
Stock number:
103124

Description

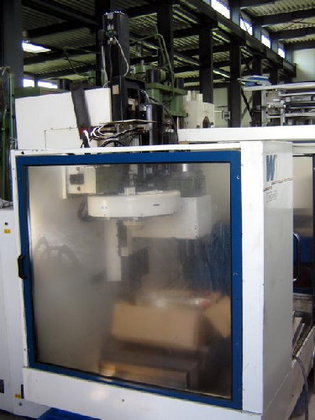

Vert. Machining Center Manufacturer WAGNER Type WMC 610
Machine no .: 79120073 Year of manufacture 1994
Technical specifications:
Longitudinal travel = X: 610 mm
Cross travel distance = Y: 410 mm
Vertical travel = Z: 510 mm
Table size: 900 x 400 mm
Table load max .: 100 kg
Distance from spindle center to stand: 400 mm
Distance between spindles and table: 150 - 660 mm
Spindle mount: BT 40
Stepless spindle speeds: 150 - 6000 rpm.
Feed rates infinitely: 1 - 10000 mm / min
Rapid traverse: 18/18/12 m / min
AC main spindle motor 40%: 8 kVA
AC feed motor: 5.5 / 5.5 / 14 Nm
Number of tools in the magazine: 18
Max. Tool diameter: 80/100 mm
Max. Tool length: 300 mm
Max. Tool weight: 6 kg
Machine weight: 4200 kg
Dimensions L x W x H: 2215 x 2510 x 2760 mm
With
- CNC control BOSCH
- Cooling system
Used, in good condition
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
