Location:
Staufenberg, Germany
Model:
SU 315 - 1000

Specifications

Condition:
used
Year:
1970
Stock number:
103422
Subcategory:
Grinders
Subcategory 2:
Cylindrical grinders

Description

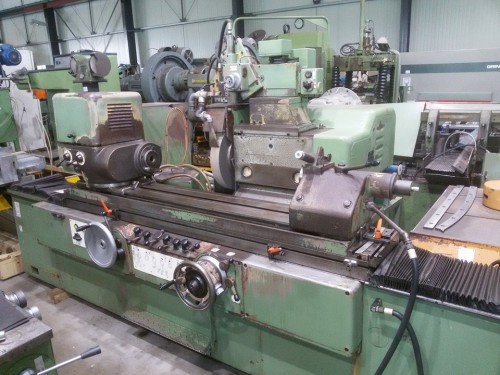

. Universal cylindrical grinding machine Fabr WMW Type SU 315 - 1000
Masch. Nr. 6154, built in 1970
Technical specifications:
Largest swing diameter: 315 mm
Length of grinding: 1000 mm
Biggest workpiece weight: 300 kg
Grinding body measurements gr. Diam .: 630 mm
gr. width: 200 mm
Bore: 305 mm
Table speed in longitudinal loops 0.05 - 5 m / min -1
Table adjustment by handwheel fine: 4.9 mm
gross: 26.5 mm
Pivotability of the upper table: 7 ° 20 '
Workpiece rotation (10 steps): 22.5 to 500 min-1
Swiveling against the abrasive: 105 °
from away Slept body: 15 °
Grinding spindle speed at V = 35 m / s .: 1060/1200 / 1400 rev / min.
at V = 50 m / sec: 1500 rev / min.
Power rating: 7.5 kW
Weight: 4.6 t
External dimensions LxWxH: 3800 x 2000 x 1500 mm
With
-Kopierabrichteinrichtung
-Kühlmitteleinrichtung
Used, in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding. Subject to errors ....
