Location:
Staufenberg, Germany
Model:
M 615 /615

Specifications

Condition:
used
Year:
1980
Stock number:
103618
Subcategory:
Grinders
Subcategory 2:
Cylindrical grinders

Description

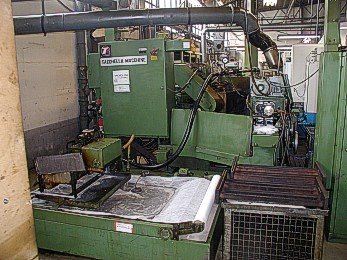

Angular plunge grinding machine Fabr. TACCHELLA type M 615
Year 1980
Technical specifications:
Distance between centers: 615 mm
Center height: 155 mm
gr workpiece weight:. 100 kg
Rapid: 90/100 mm
Hand fine adjustment: 160/180 mm
Grinding wheel size max .: 610 x 150 x 203 mm
. Gr aut Durchmesserabtrag. 99.999 mm
Immersion speed b. Plunge 0.03 - 5 / 0.3 to 2 mm
Scale interval of the vernier on the handwheel: 0.005 / 0.001 mm
intermittent service at every Tischumsteuerung: 0,01 - 0,05 / .005 to .01
Sparking-out strokes: 0 - 9
aut. table adjustment min / max .: 4/600 mm
. Gr table tilt: + 10 ° - 5 °
8 workpiece spindle speeds: 45 - 400 rpm.
ges. Power requirement approx .: 17 kW
Weight: 5700 kg
With
- Marposs measuring device
- hydraulic
- Cooling device
- balancing
- documentation
Used, in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding.
