1985 ELUMATEC KF 187 in
Location:
Staufenberg, Germany
Price:
No price
Model:
KF 187

Specifications

Condition:
used
Year:
1985
Stock number:
104803

Description

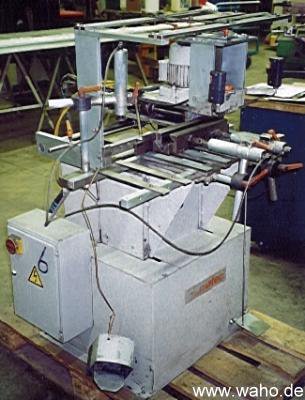

Copying machine for aluminum factory ELUMATEC type KF 187
No .: 20030 Year of manufacture 1985
With large milling range
Technical specifications:
Milling range: 240 x 420 mm
Stroke: 240 mm
Cutting range of profiles: 250 x 250 mm
Milling speed: 12000 rpm.
Air consumption p. Workload: 12/32 l
Drive power: 740 watts
Air connection: 7 bar
Power connection: 380 V / 50 Hz
Weight approx .: 260 kg
Outside dimensions approx .: 1000 x 1000 x 1400 mm
With
- spraying device
- Pneumatic clamping device
- large template and milling area
- Pneumatic copying pin movement and depth adjustment
- Revolving stop for different cutting depths
Used, in good condition
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
