Location:
Staufenberg, Germany
Manufacturer:
TRANSFLUID
Model:
DB 628ST-SPS

Specifications

Condition:
used
Stock number:
105450

Description

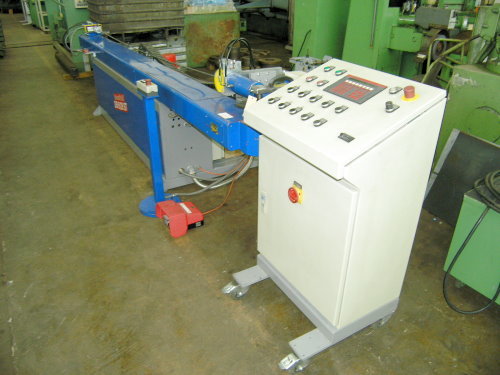

Electric hydr. Mandrel bending machine Fabr. TRANSFLIUD type DB 628 ST PLC
: 7507 Year 2000
Technical specifications:
Pipe diameter: 6 - 30 mm
Max. Wall thickness: 2 mm
Solid material up to 20 mm
Bending radius min .: 10 mm
Bending angle up to: 190 °
Bending time at 90 °: 3.0 sec.
Dorn length / Rohraufschieblänge: 3000 mm
Radius range max .: 85 mm
Bending height: 1050 mm
freestanding bending head: 850 mm lg.
Head width between 2 bends: 300 mm
Nominal pressure: 250 bar
Operating pressure: 200 bar
Motor power: 2.2 kW
Dimensions L x W x H: 3500 x 900 x 1300 mm
Weight approx .: 800 kg
With
- PLC control,
Folding sequence halbautom. Or manually selectable
- Stores up to 500 tubes
with 20 different positions
- Hydraulic drive
- Right bending
- Triggering either by foot or hand switch
- Bending direction clockwise
- Hollow shaft for small radii
Tools - Manual Reset
- Hydraulic thrust bearing
- Airstream. Locking the tools
- Hydr. tube voltage
-...
