10-roll bar straightening machine WIRTH

10-roll bar straightening machine WIRTH SRM - 160 / 3 in München, Germany

Location:
München, Germany
Manufacturer:
WIRTH
Model:
SRM - 160 / 3

Specifications

Condition:
used
Year:
0
Stock number:
1132-403456
Speed:
20,30,40 m/min
State:
Used machine
Control:
konventionell
Age info:
ca.1970er Jahre
Division:
Metal Processing
More info:
On request
Quotation:
ex location
Bar length:
8000 mm
Working area:
35,,,,140,,,170 mm
Delivery time:
to be discussed
Country of origin:
Germany

Description

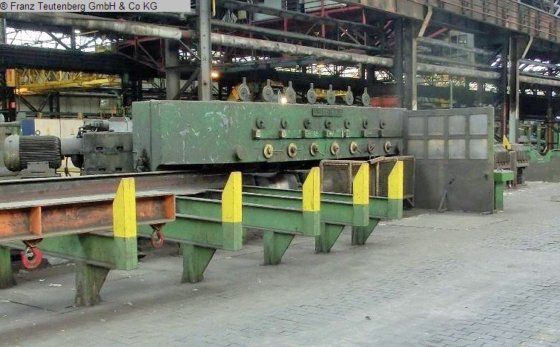

10 - Roll Straightening machine for bars and tubes
Construction WIRTH
Type SRM - 160 / 3
New approx. 1970ties
Condition: good
Working range: bars 35 - 140 mm dia. up to 1000 N/mm²
tubes 35 - 170 mm dia.
Roll design: 3 lower straightening rolls, driven
7 upper counter pressure rolls, non-driven
Material length: up to 8 meter
Straightening speed: 20, 30 and 40 m/min.
Main motor 3 x 32/42/50 kW, 750/1000/1500 Rpm, 500 V, 50 Hz
The complete line consists of:
- Material entry table (chain conveyor)
- Separating device
- Entry roller channel
- Main machine boday with 3 gears and 3 motors
- Exit channel
- Material deposite collecting rack
- Operating panel
- Electrical cabinet
Total weight: approx. 58 to.
Photos: more photos are available upon request.
Reference video: Can be seen at:
