Location:
Bensenville, IL
Manufacturer:
ABEC

Specifications

Condition:
used
Stock number:
46410001
Bottom:
Dished Bottom
Gallons:
9.2
Mounted:
Frame Mounted
Diameter:
12-1/2"
Jacket psi:
60
Mixer type:
3 Blade Prop
Year built:
1993
Agitator hp:
1/2
Interior psi:
40
Agitator type:
Fixed Mount
Straight side:
15"
Agitator cycle:
60
Agitator phase:
3
Agitator ratio:
10 to 1
Top head style:
Dished Head
Outlet location:
Bottom
Agitator voltage:
208-230/460 Volt
Agitator location:
Side Bottom
Internal pressure:
40 psi
Number of baffles:
4
Overal dimensions:
64"L X 54"W X 90"T
Pressure - jacket:
60 psi
National board no.:
4710
Internal temperature:
300 degrees F
Temperature - jacket:
300 degrees F
Horizontal or vertical:
Vertical
Agitator shaft material:
316 Stainless Steel
Material of construction:
316 Stainless Steel

Description

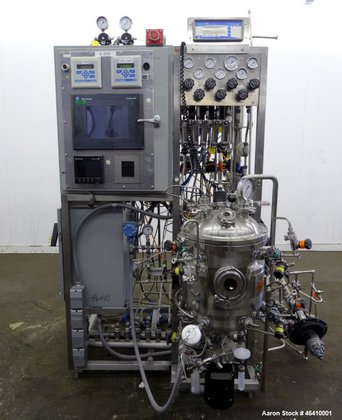

46410001 Used- ABEC Integrated Solutions 35 Liter (9.2 Gallon) Bioreactor System consisting of: (1) Precision Stainless reactor, 35 liter (9.2 gallon), 316L stainless steel, vertical. 12-3/4" Diameter x 15" straight side. Dished bolt on top, dish bottom. Internal rated 40 psi at -20 to 300 degrees F, vacuum design 15 psi. 304L Stainless steel jacket rated 60 psi at -20 to 300 degrees F. Bottom entering 3 blade agitator, driven by a 1/2 hp, 3/60/230/460 volt, 140/170 rpm gear motor, ratio 10 to 1. (4) Sidewall baffles. Various top openings with sight glass, various side openings with a sight glass, off center bottom outlet. National Board #4710, Serial #6235-2, built 1993. Includes an Allen-Bradley PanelView 1000, Allen-Bradley SLC 5/05 CPU controller, (2) Broadley Technologies model 30 transmitters, (1) Honeywell Minitrend V5 recorder, (1) YSI BioVision 8500 co2 monitor, miscellaneous piping, filters, and valves. Mounted on a stainless steel frame. Year 1993.
