Location:
Bensenville, IL
Model:
CPL75-V-400

Specifications

Condition:
used
Stock number:
46430003
Sqft:
2751.3
Material:
316SS
Year built:
2008
Head material:
Carbon Steel
Tube material:
316L Stainless Steel
Shell material:
Carbon Steel
Square footage:
2751.3
Horizontal or vertical:
Vertical

Description

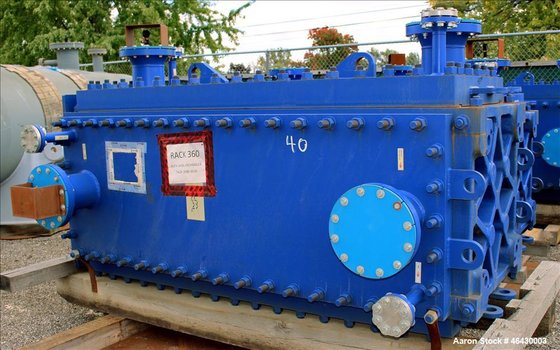

46430003 Unused- Alfa-Laval Compabloc Welded Plate Heat Exchanger, 2751.3 Square Feet Surface Area, Model CPL75-V-400, Vertical. (400) 316L Stainless steel plates. Hot side rated 260 psi/Full Vacuum at -20 to 350 degrees F, cold side rated 170 psi/Full Vacuum at -20 to 350 degrees F. Carbon steel removable side panels faced with stainless steel. 8" Inlets & outlet, 2" vents. National Board# 18534, serial# 50771, built 2008.
