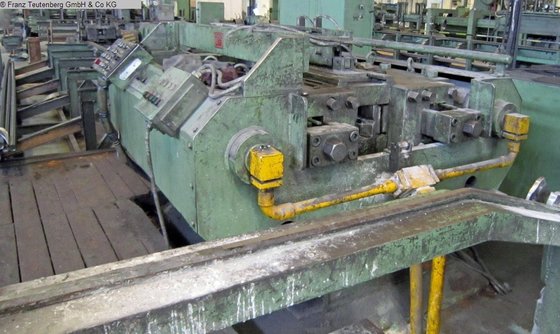

1966 Draw bench SUNDWIG 1

1966 Draw bench SUNDWIG 1 - fach / 1 - fold in München, Germany

Location:
München, Germany
Manufacturer:
SUNDWIG
Model:
1 - fach / 1 - fold

Specifications

Condition:
used
Year:
1966
Stock number:
1132-403458
State:
Used machine
Control:
konventionell
Division:
Metal Processing
More info:
On request
Quotation:
free on truck
Working area:
20 - 58 mm
Delivery time:
to be discussed
Drawing length:
7200 mm
Pulling capacity:
40 t
Country of origin:
Germany
Category:
Draw bench

Description

Draw bench with push pointer for bars
Manufacturer: SUNDWIG
New-in: 1966
Pull: 40 to.
Working area: Ø 20-58 mm
Drawing length: up to 7,2 meters
Drawing speed: 7 m/min.
AC Motor: 45 kW, 1470 1/min, 380 V, 50 Hz
Scope of supply:
================
- Entry loading device, 6000 mm
- Push pointer, power: 200 Bar (original working roll, new pump and valves)
- Main machine body with motor and gear box
- Exit unloading device, max.7200 mm
- Electrical cabinet
- Operating panel
- Spares: carriage of drawing stone and forming ring
- Documentation
weight: approx. 35 to.
More photos and video are available upon request.
