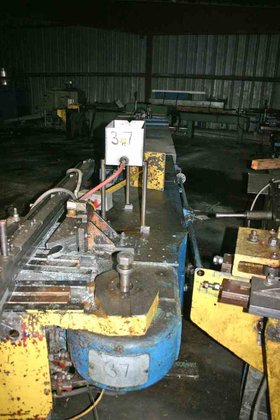

Pines #2 3" MODEL HORIZONTAL
Location:
Holland, OH
Model:
#2

Specifications

Condition:
used
Stock number:
52443
Motor:
7-1/2 HP / 220/440 / 3 / 60
Bending arm:
30"
Maximum radius:
12"
Steel tubing yp:
TO 40,000 PSI 3-1/2" TO .083
Bending arm speed:
5.5 RPM
Stroke of mandrel:
18"
Steel bar round yp:
TO 40,000 PSI 1-7/8" DIA
Maximum tube length:
20'9" OVER MANDREL APPROX
Extra heavy pipe ips:
3"
Non ferrous tubing yp:
TO 12,000 PSI 3-1/2" X .188
Non ferrous tubing yp 2:
TO 25,000 PSI 3-1/2" X .120
3) button pedestal control:
YES
Counter clockwise rotation:
YES
Hydraulic mandrel extractor:
YES
Subcategory:
Benders

Description

MODEL ............................... #2
EXTRA HEAVY PIPE IPS ................ 3"
NON FERROUS TUBING YP ............... TO 12,000 PSI 3-1/2" X .188
NON FERROUS TUBING YP ............... TO 25,000 PSI 3-1/2" X .120
STEEL TUBING YP ..................... TO 40,000 PSI 3-1/2" TO .083
STEEL BAR ROUND YP .................. TO 40,000 PSI 1-7/8" DIA
MAXIMUM TUBE LENGTH ................. 20'9" OVER MANDREL APPROX
EXTENSION TABLE W/HYD PUSH CYCLE .... 14'4"
MAXIMUM RADIUS ...................... 12"
BENDING ARM ......................... 30"
BENDING ARM SPEED ................... 5.5 RPM
STROKE OF MANDREL ................... 18"
HYDRAULIC MANDREL EXTRACTOR ......... YES
(3) BUTTON PEDESTAL CONTROL ......... YES
8 POSITION DEGREE TURRET OF BEND SELECTOR
COUNTER CLOCKWISE ROTATION .......... YES
MOTOR ............................... 7-1/2 HP / 220/440 / 3 / 60
