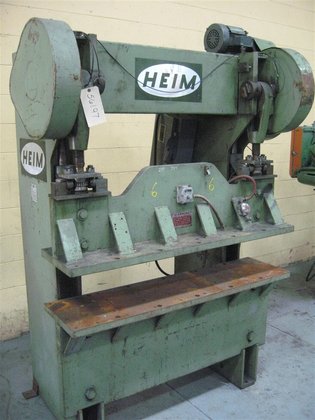

Heim 0030 X 14 MDL
Location:
Holland, OH
Manufacturer:
Heim
Model:
0030 X 14 MDL HPF
Stroke:
2" STD
Capacity:
30 TON

Specifications

Condition:
used
Stock number:
56197
Bed:
14"
Ram:
12" F - B X 54" L - R
Spm:
40
Motor:
220 / 440 / 3 / 60 HZ
Serial:
133
Stroke:
2" STD
Model 2:
HPF
Ram adj:
2-1/2"
Capacity:
30 TON
Air clutch:
YES
Disc brake:
YES
Max capacity:
48" OF 12 GA MILD STEEL
Max die space:
12" (RAMFACE TO BED)
Mid stroke tonnage:
20 TON
Distance between housings:
37"

Description

SERIAL ........................ 133
MODEL ......................... HPF
CAPACITY ...................... 30 TON
BED ........................... 14"
RAM ........................... 12" F - B X 54" L - R
DISTANCE BETWEEN HOUSINGS ..... 37"
MAX CAPACITY .................. 48" OF 12 GA MILD STEEL
MID STROKE TONNAGE ............ 20 TON
SPM ........................... 40
RAM ADJ ....................... 2-1/2"
MAX DIE SPACE ................. 12" (RAMFACE TO BED)
STROKE ........................ 2" STD
AIR CLUTCH .................... YES
DISC BRAKE .................... YES
WELDED PERMANENT FLANGED RAM .. YES
MOTOR ......................... 220 / 440 / 3 / 60 HZ
