Top Seller

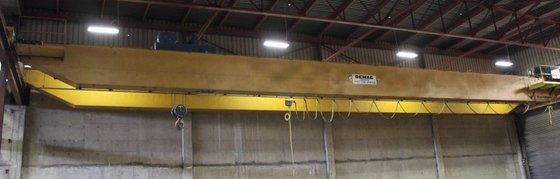

DeMag 20 TON X 100'
Location:
Holland, OH
Manufacturer:
Demag cranes
Capacity:
20 TON (40,000 LBS)

Specifications

Condition:
used
Year:
1980
Stock number:
62961
New:
1980
Lift:
32'6" MAXIMUM
Span:
100'0"
Class:
C
Capacity:
20 TON (40,000 LBS)
Headroom:
73" (TOP OF RAIL TO TOP OF CRANE)
Job number:
43244
Hoist motor:
38.6 HP
Bridge speed:
320/160 FPM
Cable system:
FESTOONED
Construction:
DOUBLE BOX GIRDER; TOP RUNNING BRIDGE & HOIST
Reference no:
DZ 8304
Bridge motors:
2 MOTORS AT 8.9 HP EACH
Lifting speed:
24 AND 2.4 FPM
Trolley speed:
100/30 FPM
Trolley motors:
2 MOTORS AT 1.1 HP EACH
Pendant control:
YES
Subcategory:
Crane- overhead

Description

JOB NUMBER ........... 43244
REFERENCE NO ......... DZ 8304
NEW .................. 1980
CLASS ................ C
CAPACITY ............. 20 TON (40,000 LBS)
SPAN ................. 100'0"
CONSTRUCTION ......... DOUBLE BOX GIRDER; TOP RUNNING BRIDGE & HOIST
TOP RUNNING HOIST .... C-E2BP 1650 H20 L4/1 F10
LIFTING SPEED ........ 24 AND 2.4 FPM
LIFT ................. 32'6" MAXIMUM
HOIST MOTOR .......... 38.6 HP
TROLLEY SPEED ........ 100/30 FPM
TROLLEY MOTORS ....... 2 MOTORS AT 1.1 HP EACH
BRIDGE SPEED ......... 320/160 FPM
BRIDGE MOTORS ........ 2 MOTORS AT 8.9 HP EACH
CABLE SYSTEM ......... FESTOONED
PENDANT CONTROL ...... YES
HEADROOM ............. 73" (TOP OF RAIL TO TOP OF CRANE)
